DCI OTN Platform
The 400G DCI platform is a high-rate WDM transmission product. One service card of 400G DCI Box supports 4x100G(QSFP28) for clients side, and 1x400G(CFP2) for line side. With 4 slots in 1U rack mount, it max supports 4x 400G transponder board, total capacity 1.6Tbps. It is mainly used in data center DCI interconnection and metro access and aggregation.
Features
* Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device.
* Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz ) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz).
* 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs.
* Dual power supply , compatible with AC or DC power supply DC-48V.
* Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces.
* Support dual network management cards, 1+1 network function.

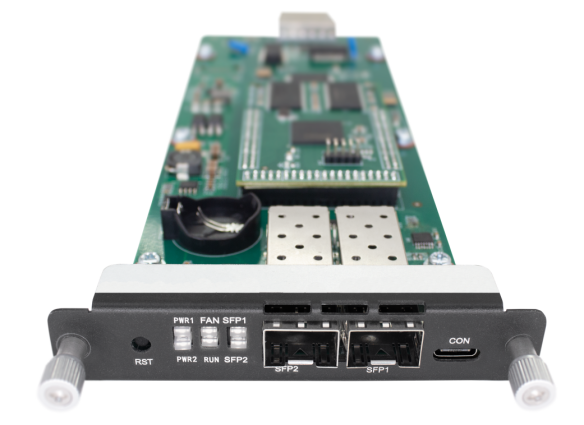

Network Management Main Control Board
The network management main control board is used to connect to the host computer of the management device. Through the host computer, each board card in the chassis can be monitored, configured and managed in real time.
Specifications
|
Parameters |
Description |
|
|
Interface |
Optical port: 2 SFP interface Electric port: 2 RJ45 ports Serial port: 1 Console interface |
|
|
Network management method |
NMS、Web、CL1、SNMP |
|
|
Environmental requirements |
Operating temperature |
-5℃~45℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Relative humidity |
5%~95% non-condensing |
|
|
Power consumption |
<15W |
|

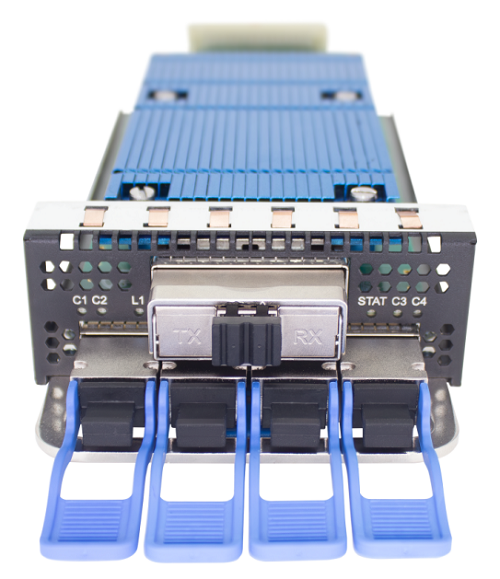

4*100G to 1*400G TMUX Board
The 4*100G to 1*400G TMUX board is used for fiber link 400G business access board. It can realize 4*QSFP28 100G conversion CFP2 400G, CFP2 coherent optical module wavelength adjustable, and cooperate with DWDM multiplexer/demultiplexer to realize wave division multiplexing transmission and provide a high-quality solution to solve the shortage of optical fiber resources and transmission lines with large loss of optical fiber lines.
Specifications
|
Parameters |
Description |
|
|
Maximum capacity of single board |
4*100G two-way transmission 4*100G one-way transmission |
|
|
Wavelength (frequency) range |
DWDM:1529.16mm-1567.14nm(191.3THz-196.05THz) |
|
|
Adjustment method |
DP-QPSK@100G; DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G; DP-8QAM@300G: DP-16QAM@400G |
|
|
Line side protocol |
Open ROADM/Open ZR+/SCFEC |
|
|
Dispersion tolerance |
±40000ps/nm@100G |
|
|
OSNR Tolerance |
<11.5dB@100G DP-QPSK:<18.5dB@200G DP-8QAM;<21.5dB@200G DP 16QAM;<14dB@200G DP-QPSK; |
|
|
Service access type |
100GE、100GE KR4、OTU4 and 100G FlexE |
|
|
Dimension |
81(W) x 39(H) x 218(D) (mm) |
|
|
Environmental requirements |
Operating temperature |
-5℃~45℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Relative humidity |
5%~95% non-condensing |
|
|
Power consumption |
<80W |
|
