Ethernet Network Patch Cables

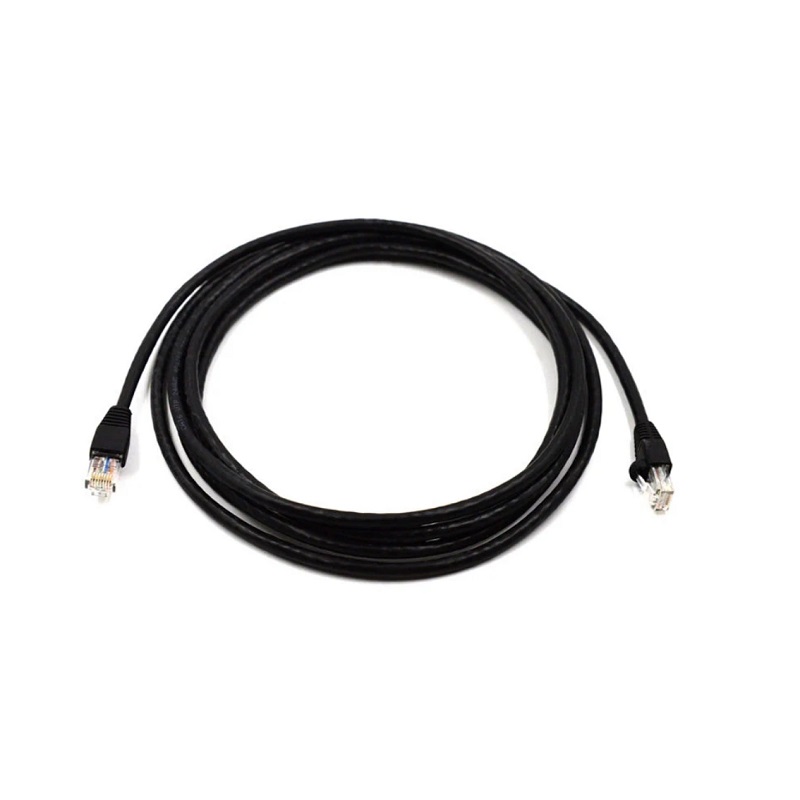

The Cat5e network patch cable is popularly used for local area network cabling, supporting up to 1 Gigabit and 250MHz within 100 meters of cable.

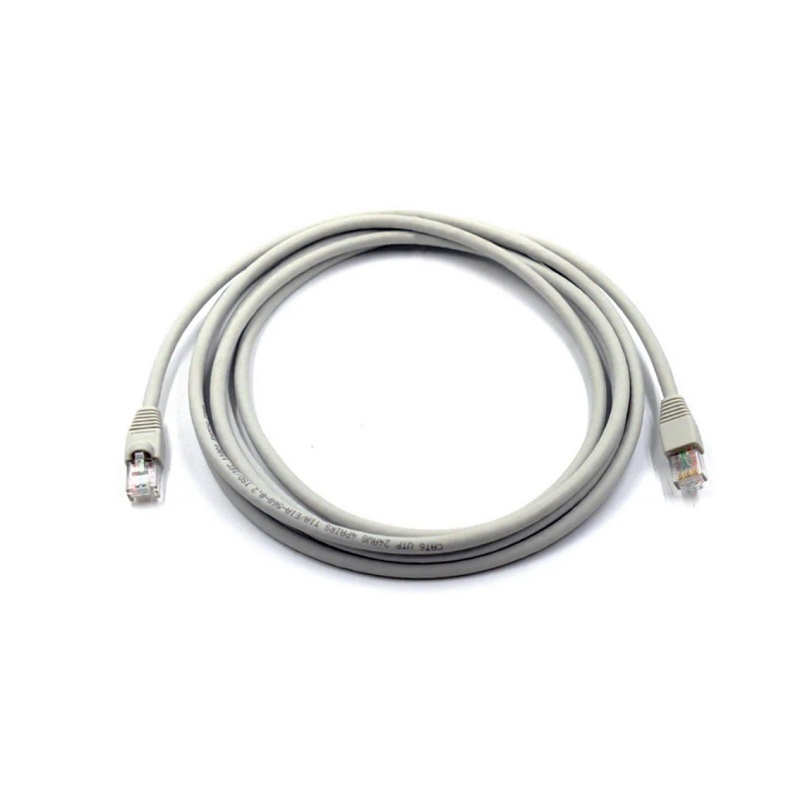

The Cat6 network patch cable offers speeds up to 1 Gigabit and bandwidth up to 550MHz. It provides the cost-effective solution for indoor Gigabit Ethernet data center applications.
The Cat6a network patch cable is popularly used for local area network (LAN cabling), supporting up to 10GBase-T and 550MHz within 100 meters of cable.

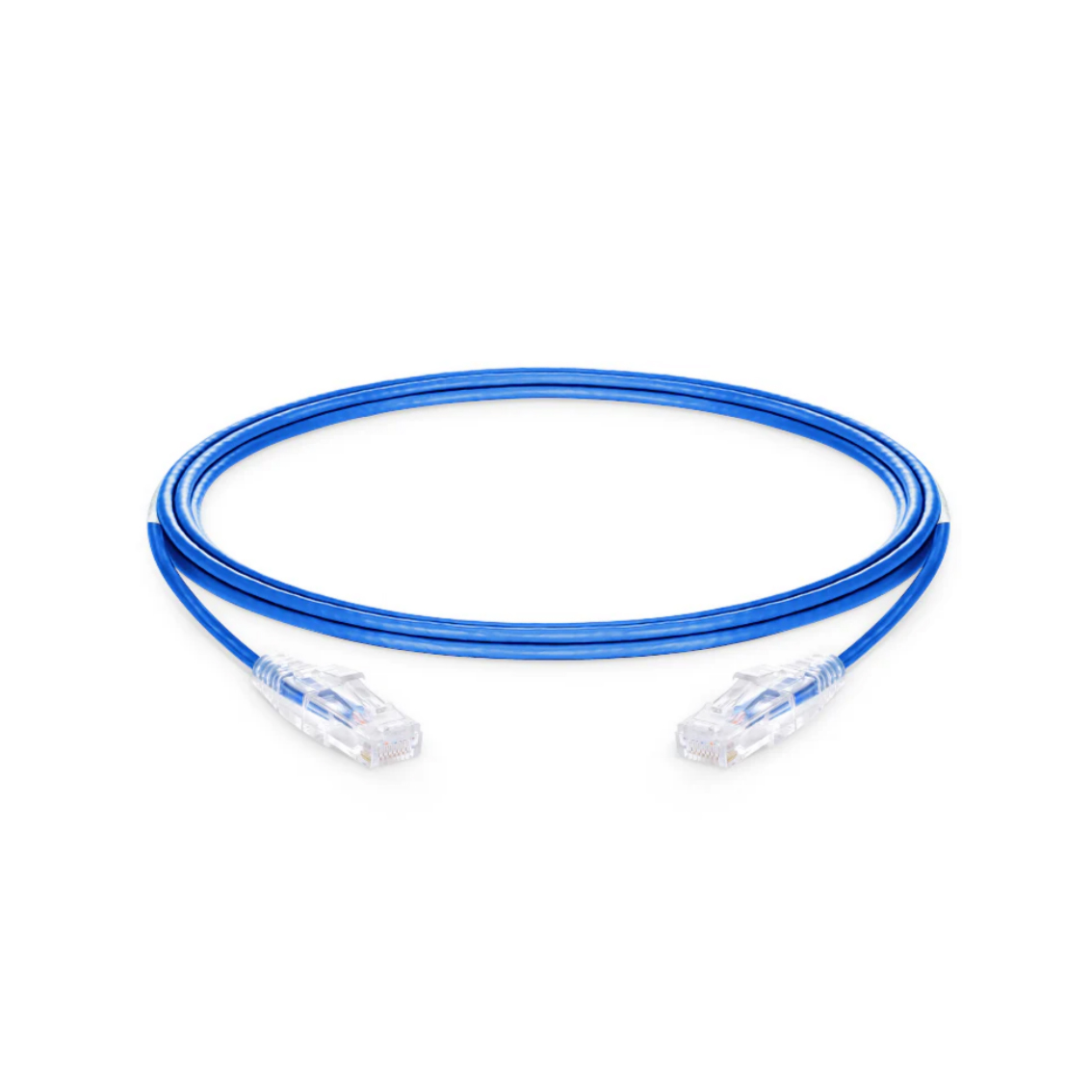

The Cat6/Cat6a slim network patch cable comes with a compact 28AWG design which simplifies installation and management. It is great for limited space network infrastructures. Smaller patch lead size helps alleviate congestion as well as improving airflow with in the racks.
The Cat7 network patch cable is the cost-effective solution for indoor data center applications. It is designed to support 10 Gigabit Ethernet over 100 meters, offering enhanced shielding to reduce interference and crosstalk. And it is fully backward compatible with all the previous categories.
|
Ethernet Network Patch Cables |
||||||||||
|
P/N |
Description |
Shielding Type |
Gauge (AWG) |
Data Rate Support |
Standard Bandwidth |
Cable Outer Diameter (mm) |
Conductor Material |
Cable Jacket |
Operating Temperature |
Installation Temperature |
|
C5E-N-S/UTP |
Cat5e Non-booted Unshielded (UTP) PVC CM Ethernet Network Patch Cable |
Unshielded (UTP) |
24AWG |
1000Base-T |
250MHz |
5.5 ± 0.4 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C5E-UTP |
Cat5e Snagless Unshielded (UTP) PVC CM Ethernet Network Patch Cable |
Unshielded (UTP) |
24AWG |
1000Base-T |
250MHz |
5.5± 0.4 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C5E-S/UTP |
Cat5e Snagless Shielded (F/UTP) PVC CM Ethernet Network Patch Cable |
Shielded (F/UTP) |
26AWG |
1000Base-T |
250MHz |
5.3 ± 0.4 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C6-UTP-S |
Cat6 Snagless Unshielded (UTP) PVC CM Slim Ethernet Network Patch Cable |
Unshielded (UTP) |
28AWG |
1000Base-T and Maximum to 10GBase-T |
550MHz |
3.8 ± 0.2 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C6-S/FTP |
Cat6 Snagless Shielded (S/FTP) PVC CM Ethernet Network Patch Cable |
Shielded (S/FTP) |
26AWG |
1000Base-T and Maximum to 10GBase-T |
550MHz |
6.2 ± 0.3 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C6A-UTP |
Cat6 Snagless Unshielded (UTP) PVC CM Ethernet Network Patch Cable |
Unshielded (UTP) |
24AWG |
1000Base-T and Maximum to 10GBase-T |
550MHz |
6.1 ± 0.4 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C6A-UTP-S |
Cat6a Snagless Unshielded (UTP) PVC CM Slim Ethernet Network Patch Cable |
Unshielded (UTP) |
28AWG |
1000Base-T and Maximum to 10GBase-T |
550MHz |
4.2 ± 0.3 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C6A-S/FTP |
Cat6a Snagless Shielded (S/FTP) PVC CM Ethernet Network Patch Cable |
Shielded (S/FTP) |
26AWG |
10GBase-T |
550MHz |
6.2 ± 0.3 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
C7-S/FTP |
Cat7 Snagless Shielded (S/FTP) PVC CM Ethernet Network Patch Cable |
Shielded (S/FTP) |
26AWG |
10GBase-T |
600MHz |
6.2 ± 0.3 |
Pure Bare Copper |
PVC CM (Round) |
-20 to +75°C (-4 to 167°F) |
-10 to +50°C (14 to 122°F) |
|
Note: |
||||||||||
|
The network patch cables can be customized in different colors and lengths, please contact us for futher details. |
||||||||||
