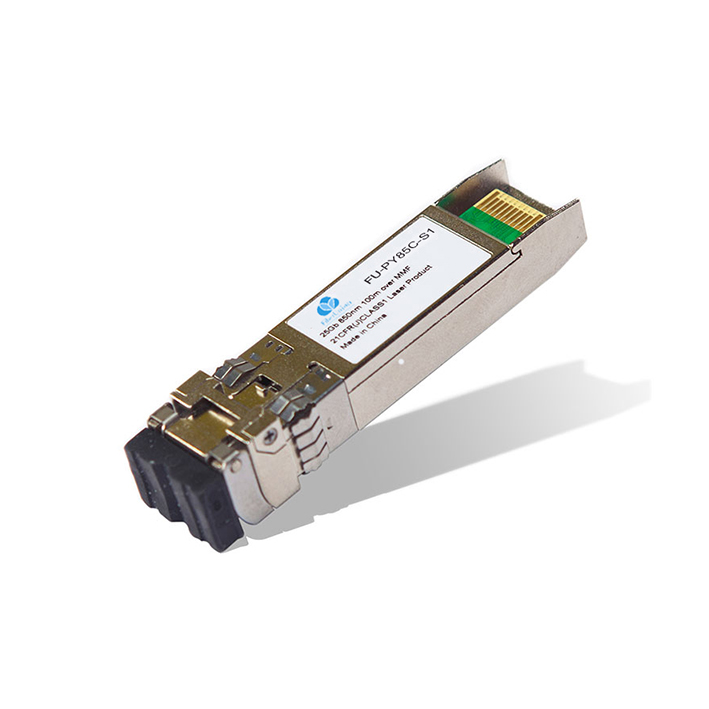

25G SFP28 Transceivers
SFP28 stands for Small Form-Factor Pluggable 28. It is the third generation of the SFP interconnect systems designed for 25G performance per the IEEE 802.3 by specification (25GBASE-CR). FiberUnion high-density and low-power 25G SFP28 transceivers with Digital Monitoring.
Applications:
* Inter Rack Connections in Data Centers
* 5G Wireless
|
25G SFP28 |
||||||||||
|
P/N |
Description |
Data Rate |
Reach |
TX Laser |
RX Laser |
TX_Min (dBm) |
TX_Max (dBm) |
Rx Sensitivity (dBm) |
Power Consumption(W) |
Temperature (deg C) |
|
25GS28-SR |
25GBASE-SR SFP28 850nm 100m Transceiver |
25Gbps |
100m |
850nm VCSEL |
PIN |
-8.4 |
2.4 |
-10.3 |
<1.0 |
0~70 |
|
25GS28-LR |
25GBASE-LR SFP28 1310nm 10km Transceiver |
25Gbps |
10km |
1310nm DFB |
PIN |
-7.0 |
2.0 |
-14.0 |
<1.5 |
0~70 |
|
25GS28-ER |
25GBASE-ER SFP28 1310nm 30km/40km Transceiver |
25Gbps |
30km(Non-FEC)/40km |
1310nm EML |
APD |
1.0 |
6.0/6.0 |
0.9 |
<1.5 |
0~70 |
|
25GS28-SRI |
25GBASE-SR SFP28 850nm 100m Industrial Temperature Transceiver |
25Gbps |
10km |
1310nm DFB |
PIN |
-7.0 |
2.0 |
-14.0 |
<1.5 |
-40~85 |
|
25GS28-LRI |
25GBASE-LR SFP28 1310nm 10km Industrial Temperature Transceiver |
25Gbps |
100m |
850nm VCSEL |
PIN |
-8.4 |
2.4 |
-10.3 |
<1.0 |
-40~85 |
|
S28CWDM-LR-x |
25G CWDM SFP28 10km (x=1270nm ~1570nm) Industrial Temperature Transceiver |
25Gbps |
10km |
DFB CWDM |
PIN |
-7.0 |
2.5 |
-14.0 |
<1.5 |
-40~85 |
|
25GS28-BDI |
25G BiDi SFP28 1270nm/1330nm 10km Industrial Temperature Transceiver |
25Gbps |
10km |
1270/1330nm DFB |
PIN |
-7.0 |
2.0 |
-14.0 |
<1.0 |
-40~85 |
