40G QSFP+ Transceivers
FiberUnion supports a full range of optical transceivers for 40GbE, compliant to the IEEE802.3ba and SFF-8436 standards. Our 40G QSFP+ portfolio includes SR4, LR4, LR4 Lite, ER4, PSM IR4 and PSM LR4.
Applications:
* Data Centers
* Zone Network
* Metro Network
| 40G QSFP+ | |||||||||
| P/N | Description | Data Rate | Max Link Length | TX Laser | RX Laser | TX Power | Rx Sensitivity | Power Consumption | Temperature |
| 40GQSFP-SR4 | 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver | 40Gbps | 100m | 850nm VCSEL | PIN | -7.6~1dBm | <-11.1dBm | ≤1.2W | 0~70°C |
| 40GQSFP-eSR4 | 40GBASE-eSR4 QSFP+ 850nm 300m MTP/MPO Transceiver | 40Gbps | 300m | 850nm VCSEL | PIN | -7.5~0dBm | <-9.9dBm | ≤1.2W | 0~70°C |
| 40GQSFP-LR4L | 40GBASE-LR4L QSFP+ 1310nm 2km LC Transceiver | 40Gbps | 2km | DFB CWDM | PIN | -7~2.3dBm | <-11.5dBm | ≤3.5W | 0-70°C |

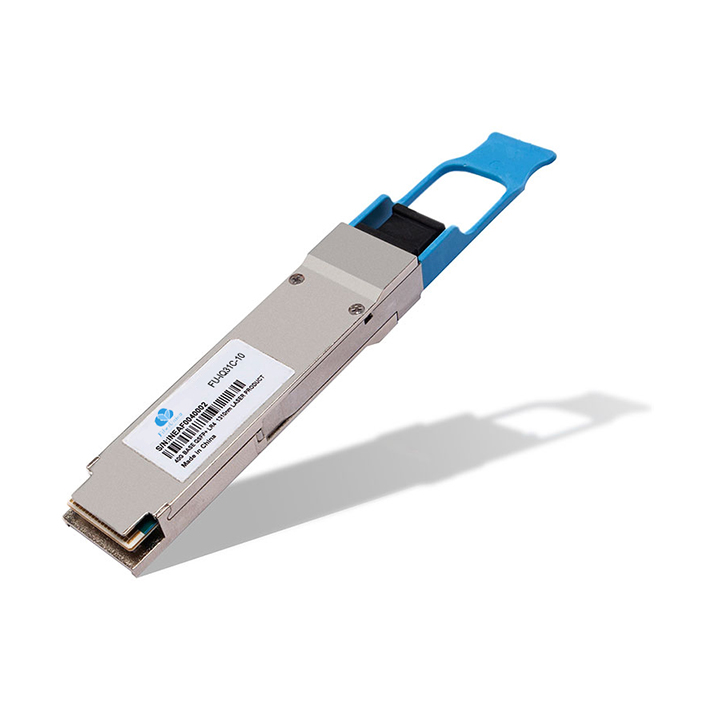

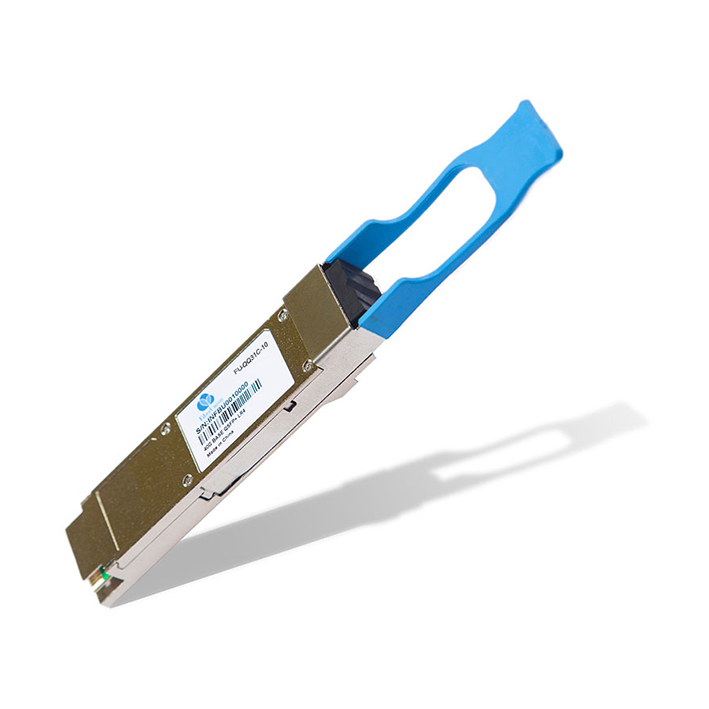

| 40GQSFP-LR4 | 40GBASE-LR4 QSFP+ 1310nm 10km LC Transceiver | 40Gbps | 10km | DFB CWDM | PIN | -7~2.3dBm | <-11dBm | ≤3.5W | 0~70°C |

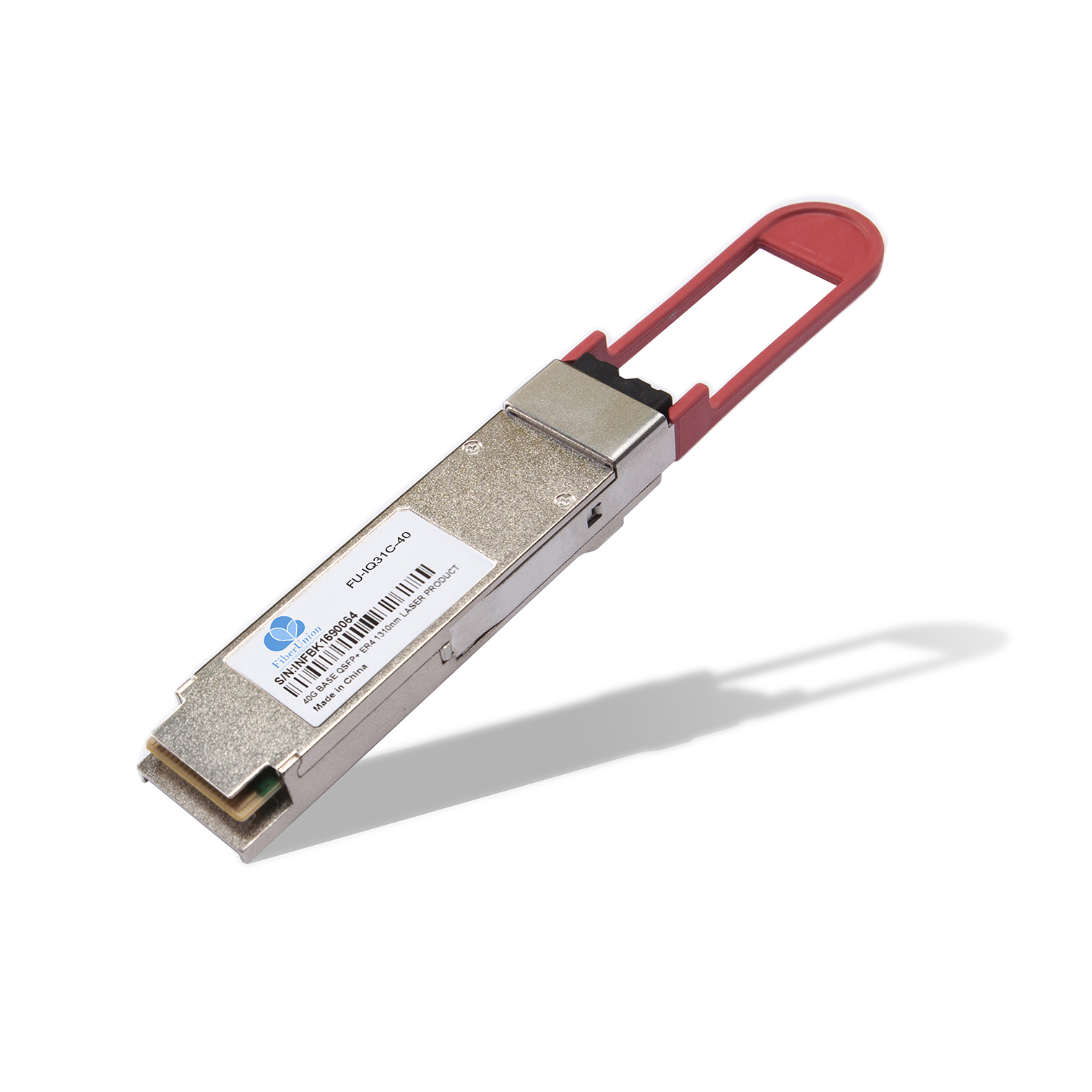

| 40GQSFP-ER4 | 40GBASE-ER4 QSFP+ 1310nm 40km LC Transceiver | 40Gbps | 40km | DFB CWDM | APD | -2.7~4.5dBm | <-21.2dBm | ≤3.5W | 0~70°C |
| 40GQSFP-PLRL4 | 40GBASE-PLRL4 QSFP+ 1310nm 2km MTP/MPO Transceiver | 40Gbps | 2km | 1310nm DFB | PIN | -9.4~0.5dBm | <-14.4dBm | ≤3.5W | 0~70°C |
| 40GQSFP-PLR4 | 4 x 10GBASE-LR QSFP+ 1310nm 10km MTP/MPO Transceiver | 40Gbps | 10km | 1310nm DFB | PIN | -6~-1dBm | <-14.4dBm | ≤3.5W | 0~70°C |
| 40GQSFP-LX4 | 40GBASE-UNIV QSFP+ 1310nm 2km LC Transceiver | 40Gbps | 150m@OM3 /2km@SMF |
DFB CWDM | PIN | -7~4.3dBm | <-10dBm | ≤3.5W | 0~70°C |
| 40G-SR-BD | 40GBASE-SR Bi-Directional 832nm ~ 918nm 150m Duplex LC Transceiver | 40Gbps | 150m | VCSEL 850/900nm | PIN | -4~5dBm | <-6dBm | ≤3.5W | 0~70°C |
| 40GQSFP-SR-BD | 40GBASE-SR SWDM4 BiDi QSFP+ 850nm 300m Duplex LC Transceiver | 40Gbps | 300m | VCSEL | PIN | -7.5~3dBm | <-9.1dBm | ≤3.5W | 0~70°C |
| 40GQSFP-ZR4 | 40GBASE-ER4 QSFP+ 1310nm 80km LC Transceiver | 40Gbps | 80km | EML | PIN | 1~6dBm | <-25dBm | ≤4.5W | 0~70°C |
