MPO Trunk Cables
FiberUnion provides MPO fiber trunk cable with different lengths and they are widely used for inter building and intra building backbone cabling runs. The high density MPO fiber optic cable assemblies save time and space in your network.
Standards Compliance:
* ROHS, CE (EN 50575 CPR) and ISO9001 Compliant
* EIA/TIA, Telecocordia GR-326-CORE Standards
* IEC61754-7
* TIA 605-4 (FOCIS 5)
* YD/T1272.5
Features:
* SENKO MPO connector
* OS2, OM3, OM4 available
* LC, SC, FC, ST connectors available
* 0.35dB elite low loss connector
* Factory terminated and tested
* Allow easy migration from 10GbE to 40GbE or 100GbE
* Pulling eyes are provided as an option to protect the fiber ends during installation
|
MPO Trunk Cables |
||||||||||||
|
P/N |
Description |
Length (Meter) |
Wavelength |
Minimum Bend Radius |
Insertion Loss |
Return Loss |
Attenuation |
Installation Tensile Load |
Long-Term Tensile Load |
Operating Temperature |
Storage Temperature |
|
|

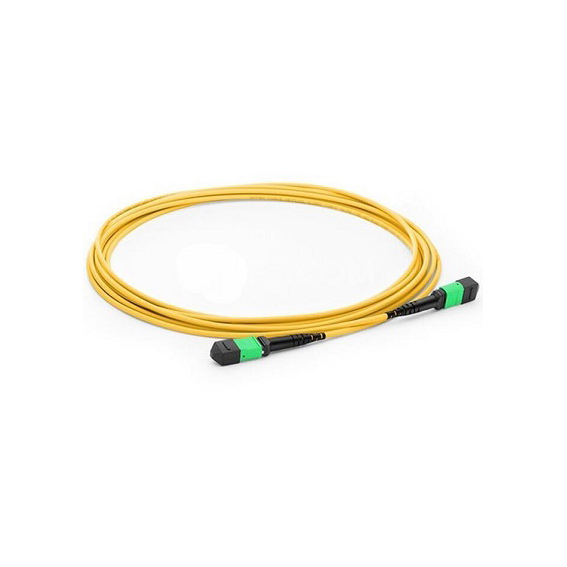

CO-12FMPOSM-x |
12 Fibers MPO Single Mode Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
1310/1550nm |
10mm |
0.35dB Max (0.15dB Typ.) |
≥60dB |
≤0.32dB/km@1310nm |
≤0.18dB/km@1550nm |
100 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
|

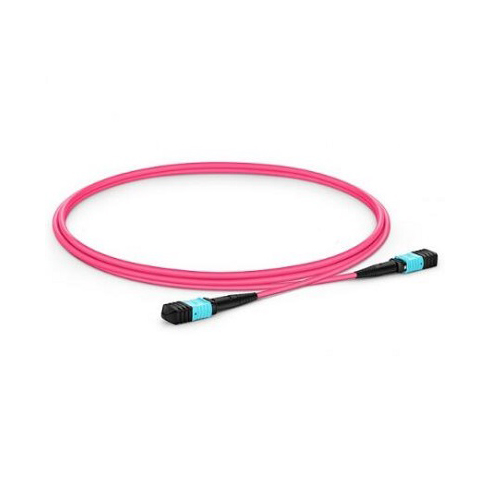

CO-12FMPOMO4-x |
12 Fibers MPO OM4 Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
0.35dB Max (0.15dB Typ.) |
≥20dB |
≤2.3dB/km@850nm |
≤0.6dB/km@1300nm |
66 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
|
CO-12FMPOMOM3-x |
12 Fibers MPO OM3 Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
0.35dB Max (0.15dB Typ.) |
≥20dB |
≤2.3dB/km@850nm |
≤0.6dB/km@1300nm |
100 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
|
CO-24FMPOSM-x |
24 Fibers MPO Single Mode Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
1310/1550nm |
10mm |
0.35dB Max (0.15dB Typ.) |
≥60dB |
≤0.32dB/km@1310nm |
≤0.18dB/km@1550nm |
100 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
|
CO-24FMPOMO4-x |
24 Fibers MPO OM4 Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
0.35dB Max (0.15dB Typ.) |
≥20dB |
≤2.3dB/km@850nm |
≤0.6dB/km@1300nm |
66 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
|
CO-24FMPOMOM3-x |
24 Fibers MPO OM3 Elite Trunk Cable LSZH |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
0.35dB Max (0.15dB Typ.) |
≥20dB |
≤2.3dB/km@850nm |
≤0.6dB/km@1300nm |
100 N |
50 N |
-10°C to +70°C |
-40°C to +85°C |
