Fiber Optic Patch Cables
FiberUnion offers a complete selection of Fiber Optic Patch Cables for every type of application. Multimode and single-mode cords are available in LC, SC, ST, FC, MTRJ or hybrid options. Multimode OM1, OM2 & OM3 as well as singlemode patch cords in any length with choice of color and standard riser, plenum or LSZH jacket are provided.
Applications:
* Entrance Facilities
* Telecommunications Rooms
* Data Centers
* Other Optical Links
|
Fiber Optic Patch Cables |
||||||||||||
|
P/N |
Description |
Length (Meter) |
Wavelength |
Minimum Bend Radius |
Insertion Loss |
Return Loss |
Attenuation |
Connector |
Cable Diameter |
Operating Temperature |
Storage Temperature |
|
|
SMD-XX-XX-x |

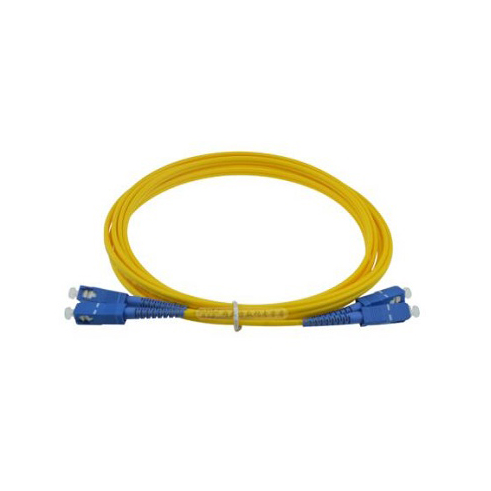

OS2 Single Mode Duplex Bend Insensitive LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
1310/1550nm |
10mm |
≤0.3dB |
≥50dB |
0.36dB/km@1310nm |
0.22dB/km@1550nm |
XX= LC, SC, ST, FC, MTRJ |
2.0mm |
-20~80°C |
-40~80°C |
|
OM4D-XX-XX-x |

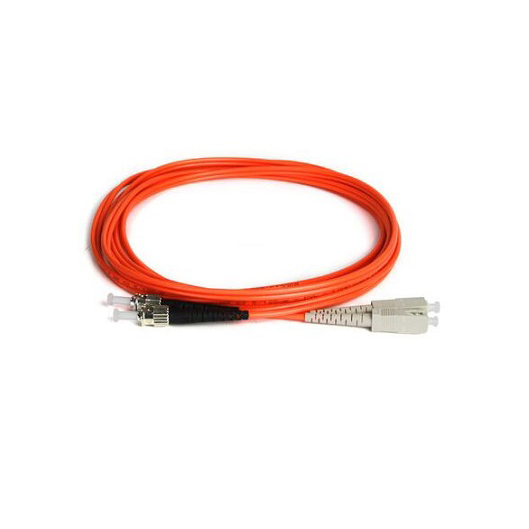

OM4 50/125 Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM3D-XX-XX-x |
OM3 50/125 Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM2D-XX-XX-x |
OM2 50/125 Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM1D-XX-XX-x |
OM1 62.5/125 Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
SMS-XX-XX-x |
OS2 Single Mode Simplex Bend Insensitive LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
1310/1550nm |
10mm |
≤0.3dB |
≥50dB |
0.36dB/km@1310nm |
0.22dB/km@1550nm |
XX= LC, SC, ST, FC, MTRJ |
2.0mm |
-20~80°C |
-40~80°C |
|
OM4S-XX-XX-x |
OM4 50/125 Simplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM3S-XX-XX-x |
OM3 50/125 Simplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM2S-XX-XX-x |
OM2 50/125 Simplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
|
OM1S-XX-XX-x |
OM1 62.5/125 Simplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0dB/km@850nm |
1.0dB/km@1300nm |
XX= LC, SC, ST, FC, MTRJ |
2.0/0.9/3.0mm |
-20~80°C |
-40~80°C |
