Ultra High Density Cables

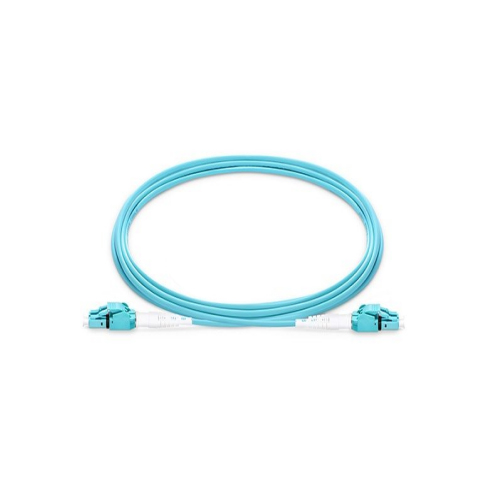

FiberUnion HD uniboot (Pull-Tab) patch cords provide excellent performance in a compact design which offers high efficiency and easier cable management. They are most suitable for advanced data centers with accelerating demands for ultimate high density cable. The cables are available in a choice of OM3, OM4 or OS2 bend-insensitive fiber.
Applications:
* Entrance Facilities
* Telecommunications Rooms
* Data Centers
* Other Optical Links
|
Ultra High Density Cables |
||||||||||||
|
P/N |
Description |
Length (Meter) |
Wavelength |
Minimum Bend Radius |
Insertion Loss |
Return Loss |
Attenuation at 850nm |
Attenuation at 1300nm |
Connector |
Cable Diameter |
Operating Temperature |
Storage Temperature |
|
SMU-LC-x |
OS2 Single Mode LC to LC Uniboot Duplex Bend Insensitive LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
1310/1550nm |
10mm |
≤0.3dB |
≥50dB |
0.32 dB/km |
0.18 dB/km |
LC |
2.0mm |
-20~80°C |
-40~80°C |
|
OM4U-LC-x |
OM4 50/125 LC to LC Uniboot Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0 dB/km |
1.0 dB/km |
LC |
2.0mm |
-20~80°C |
-40~80°C |
|
OM3U-LC-x |
OM3 50/125 LC to LC Uniboot Duplex Bend Insensitive Multimode LSZH Fiber Patch Cables |
x= 1,2,3,4,5...... |
850/1300nm |
7.5mm |
≤0.3dB |
≥20dB |
3.0 dB/km |
1.0 dB/km |
LC |
2.0mm |
-20~80°C |
-40~80°C |
