PLC splitters
PLC splitter is a key passive component which is used in FTTx networks. FiberUnion provides PLC with split counts 1x4, 1x8, 1x16, 1x32 and 1x64. PLC Splitters are availble with 900µm, 250µm, 2.0mm singlemode fiber and terminated or unterminated as per your needs.
Applications:
* FTTX Deployments
* PON Networks
* CATV Links
* Optical Signal Distribution
|

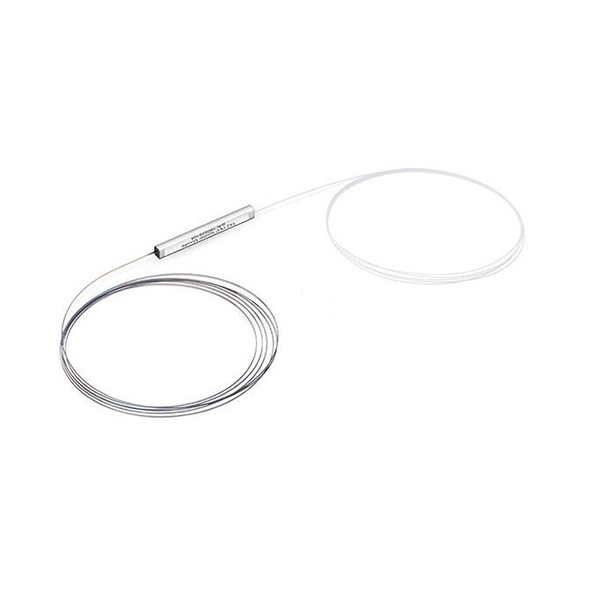

Bare PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Input/Output Fiber Length |
|
PLC2-250 |
1x2 Bare Fiber PLC Fiber Splitter, Steel Tube, 250μm |
None |
None |
50/50 |
≤4.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC4-250 |
1x4 Bare Fiber PLC Fiber Splitter, Steel Tube, 250μm |
None |
None |
50/50 |
≤7.3dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC8-250 |
1x8 Bare Fiber PLC Fiber Splitter, Steel Tube, 250μm |
None |
None |
50/50 |
≤10.6dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC32-250 |
1x32 Bare Fiber PLC Fiber Splitter, Steel Tube, 250μm |
None |
None |
50/50 |
≤17.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC64-250 |
1x64 Bare Fiber PLC Fiber Splitter, Steel Tube, 250μm |
None |
None |
50/50 |
≤20.8dB |
≤0.2dB |
≤0.3dB |
1.5m |
|

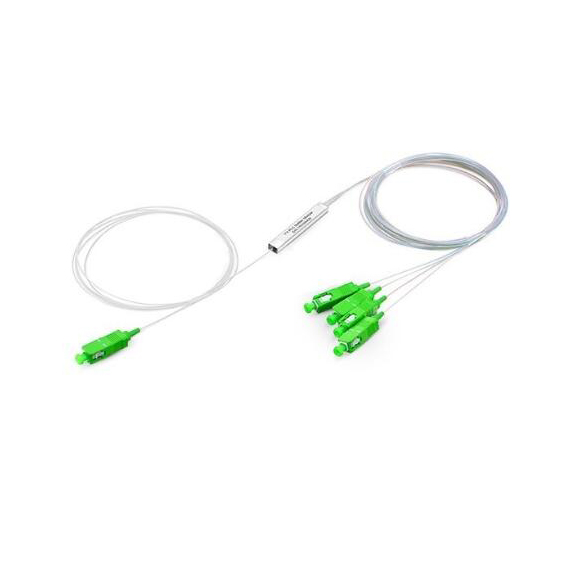

Blockless PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Input/Output Fiber Length |
|
PLC2-900 |
1x2 Blockless PLC Fiber Splitter, Mini Module , 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤4.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC4-900 |
1x4 Blockless PLC Fiber Splitter, Mini Module , 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤7.3dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC8-900 |
1x8 Blockless PLC Fiber Splitter, Mini Module , 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤10.6dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC16-900 |
1x16 Blockless PLC Fiber Splitter, Mini Module , 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤13.8dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
ABS PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Input/Output Fiber Length |
|
PLC2-ABS-2 |
1x2 Pigtailed ABS Module PLC Fiber Splitter, 2.0mm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤4.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC4-ABS-2 |
1x4 Pigtailed ABS Module PLC Fiber Splitter, 2.0mm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤7.3dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC32-ABS-2 |
1x32 Pigtailed ABS Module PLC Fiber Splitter, 2.0mm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤17.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC2-ABS-900 |
1x2 Pigtailed ABS Module PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤4.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC8-ABS-900 |
1x8 Pigtailed ABS Module PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤10.6dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC16-ABS-900 |
1x16 Pigtailed ABS Module PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤13.8dB |
≤0.2dB |
≤0.3dB |
1.5m |
|
PLC32-ABS-900 |
1x32 Pigtailed ABS Module PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤17.0dB |
≤0.2dB |
≤0.3dB |
1.5m |
|

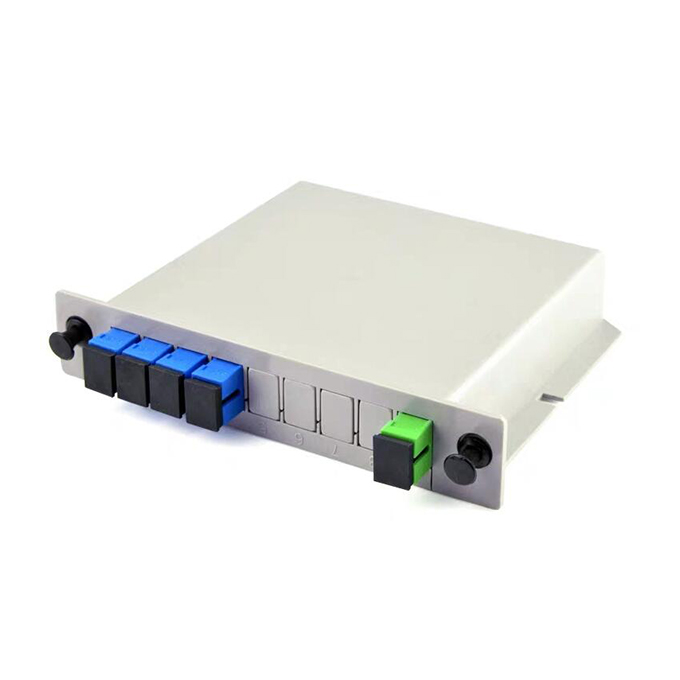

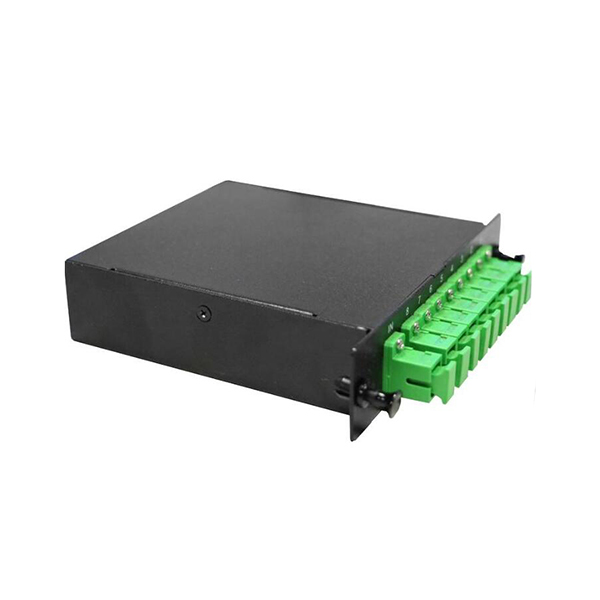

LGX Cassette PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Temperature Dependent Loss |
|
PLC4-LGX-900 |
1x4 LGX Cassette PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤7.3dB |
≤0.2dB |
≤0.3dB |
≤0.5dB |
|
PLC8-LGX-900 |
1x8 LGX Cassette PLC Fiber Splitter, 900μm |
LC/SC/FC/None |
UPC/APC |
50/50 |
≤10.6dB |
≤0.2dB |
≤0.3dB |
≤0.5dB |
|
1U Rack Mount PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Temperature Dependent Loss |
|
PLC8-1U |
1x8 1U 19" Rack Mount PLC Fiber Splitter |
LC/SC/FC |
UPC/APC |
50/50 |
≤10.6dB |
≤0.3dB |
≤0.5dB |
≤0.8dB |
|
PLC16-1U |
1x16 1U 19" Rack Mount PLC Fiber Splitter |
LC/SC/FC |
UPC/APC |
50/50 |
≤13.8dB |
≤0.3dB |
≤0.5dB |
≤0.8dB |
|
PLC32-1U |
1x32 1U 19" Rack Mount PLC Fiber Splitter |
LC/SC/FC |
UPC/APC |
50/50 |
≤17.0dB |
≤0.3dB |
≤0.5dB |
≤0.8dB |
|
Mini Plug-in PLC Splitter |
||||||||
|
P/N |
Description |
Connector |
Connector Polishing Type |
Split Ratio |
Insertion Loss |
Polarization Dependent Loss |
Wavelength Dependent Loss |
Temperature Dependent Loss |
|
PLC4-PL |
1x4 Mini Plug-in PLC Fiber Splitter |
LC/SC/FC |
UPC/APC |
50/50 |
≤7.3dB |
≤0.2dB |
≤0.3dB |
≤0.5dB |
|
PLC8-PL |
1x8 Mini Plug-in PLC Fiber Splitter |
LC/SC/FC |
UPC/APC |
50/50 |
≤10.6dB |
≤0.2dB |
≤0.3dB |
≤0.5dB |
