400G/200G Direct Attach Cables

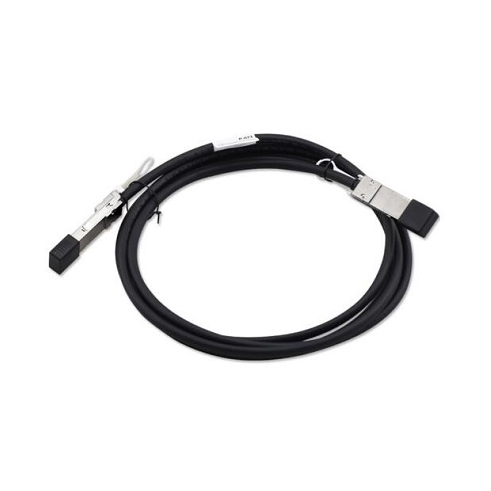

400G/200G QSFP-DD Direct Attach Cable (DAC) offers 8 independent data transmitting channels and 8 date receiving channels via copper cable, and it enable 400G in application lengths from 0.5 meter up to 2.5 meters. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP-DD Multi-Source Agreement & IEEE 400G/100G/ 25G.
Applications:
* Data Center networks
* Storage area networks
* High-performance Computing
|
400G QSFP-DD DAC |
||||||
|
P/N |
Length (Meter) |
Description |
Minimum Bend Radius |
Protocols |
Jacket Material |
Temperature |
|
QDD-DACx |
x= 0.5 ~ 2.5 |
400G QSFP-DD Passive Direct Attach Cable |
33.5mm |
400 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
QDD-S56-DACx |
x= 0.5 ~ 1 |
400G QSFP-DD to 8x50G SFP56 Breakout Passive Direct Attach Cable |
33.5mm |
400 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
QDD-QS56-DACx |
x= 0.5 ~ 1 |
400G QSFP-DD to 2x200G QSFP56 0.5m (2ft) 200G QSFP56 to 4x50G SFP56 Passive Direct Attach CablePassive Direct Attach Cable |
33.5mm |
400 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
200G QSFP56 DAC |
||||||
|
P/N |
Length (Meter) |
Description |
Minimum Bend Radius |
Protocols |
Jacket Material |
Temperature |
|
QS56-DACx |
x= 0.5 ~ 1 |
200G QSFP56 Passive Direct Attach Cable |
35mm |
200 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
QS56-Q28-DACx |
x= 0.5 ~ 1 |
200G QSFP-DD to 2x100G QSFP28 Breakout Passive Direct Attach Cable |
35mm |
200 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
QS56-S56-DACx |
x= 0.5 ~ 1 |
200G QSFP56 to 4x50G SFP56 Breakout Passive Direct Attach Cable |
35mm |
200 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
|
QS56-S28-DACx |
x= 0.5 ~ 1 |
200G QSFP56 to 8x25G SFP28 Breakout Passive Direct Attach Cable |
35mm |
200 Gigabit Ethernet |
PVC(OFNR) |
0 to 70°C (32 to 158°F) |
